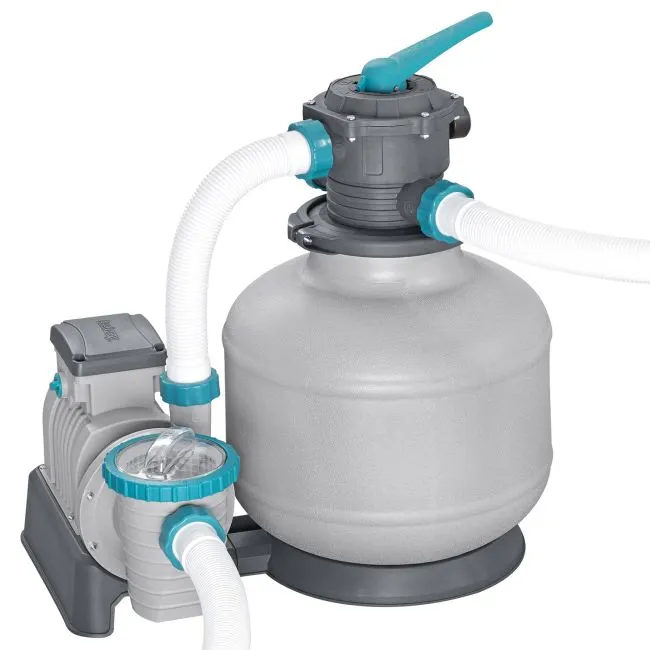

BESTWAY 58486 Sand Filter Pump for Swimming Pools, 11355 L/h

Out of stock

0 pcs

Brand:Bestway
EAN:6941607361429
SKU:00009883
Next delivery date:2027-05-01
Amount in next delivery:105
Number of pieces in a courier package:1
Quantity in the collective package:1
Length including packaging [cm]:63
Width with packaging [cm]:51.5

ProductInformation

BESTWAY SAND FILTER FOR SWIMMING POOLS

SAND FILTER PUMP -This sand filter pump is one of the most effective devices for purifying pool water. Sand filters have a long service life, andthe water purification process consists of several effective stages that make the water crystal clear.

HIGH PERFORMANCE– the large diameter of the pump chamber and the efficiency of the pumping mechanism ensurea high water flow rate—up to 11,355 l/h. It will help remove debris floating in the pool.

WIDE RANGE OF APPLICATIONS– the pump’s capacity allows it to be used in pools with volumes ranging from 1,100 to 66,600 liters. It requires a filter media—sand (#20 Silca sand, 0.45–0.85 mm) or highly efficient POLYSPHERE filter balls. Its simple design and straightforward operating principle make it easy to quickly connect the pump to the pool.

VERY EASY TO USE—the pumpfeatures: a sturdy, corrosion-resistant tank with a 6-position valve; the top clamp design allows for 360-degree rotation, enabling easy installation; an easy-to-read pressure gauge; a filter for removing leaves and debris.

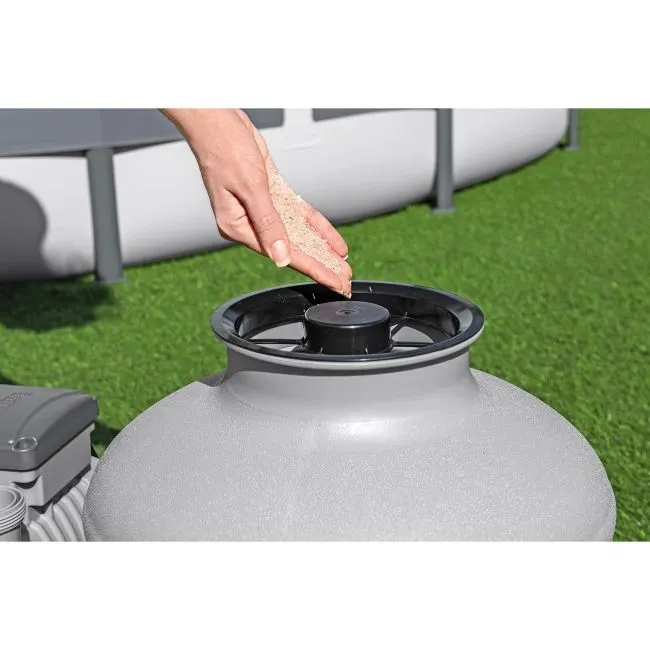

SPECIFICATIONS - filtertype: sand; recommended sand grain size: 0.45–0.85 mm; sand pump tank capacity: 36 kg; recommended total pool capacity: 1,100–66,600 L; pump power: 500 W; power supply: 220–240 V; connection diameter: 32/38 mm; dimensions (H/W): 65 × 64 cm; : weight: 16.4 kg; packaged weight: 17 kg

SPECIFICATIONS:

Filter type: sand or POLYSPHERE filter media
recommended sand grain size: 0.45–0.85 mm
sand pump tank capacity: 36 kg
Recommended pool capacity: 1,100–66,600 L
pump power: 500 W
Power supply: 220–240 V
Connection diameter: 32/38 mm

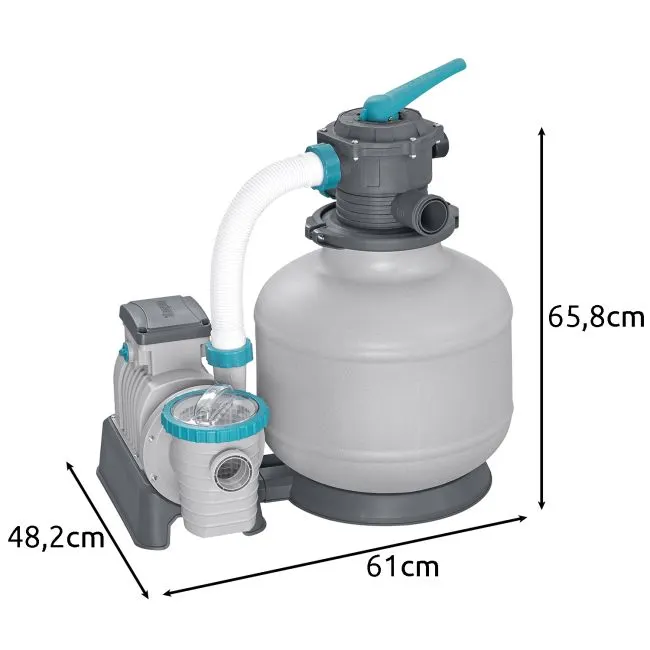

Dimensions (H x W): 65 x 64 cm
Weight: 16.4 kg;
Packaged weight: 17 kg

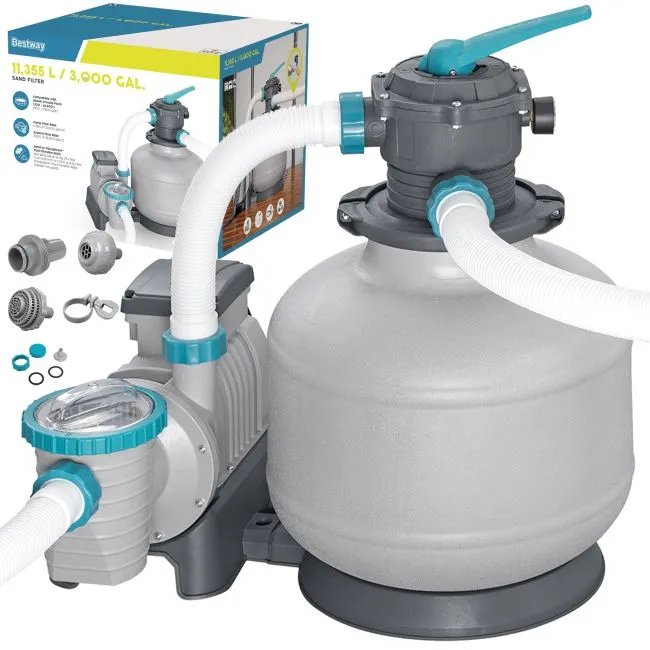

INCLUDED

pump
filter
3 hoses

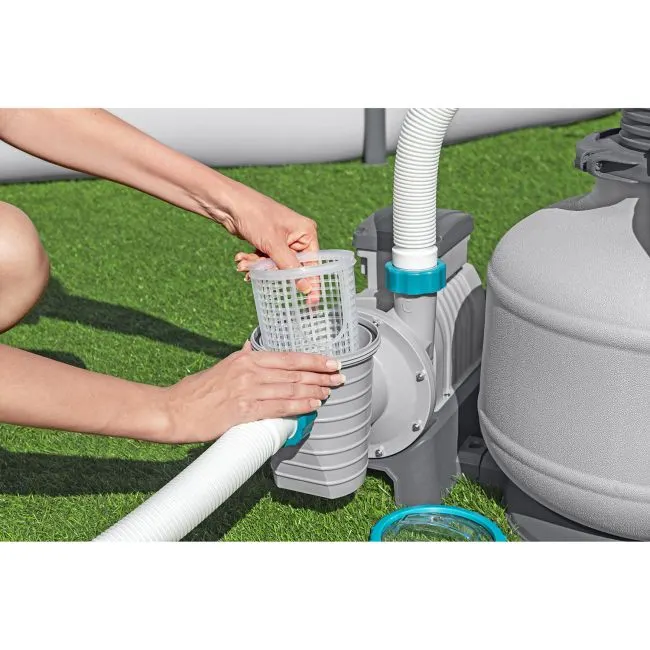

baskets
dispenser
clamps
adapters

TIMER

Allows you to set a schedule for turning the pump on and off, enabling effective management of the pool’s water filtration time. With the timer, you can precisely adjust the pump’s operating cycles to your needs, which helps save energy and improve water quality.

6 - 8 - 10 - 12 - 24 hours of operation
P4 - 4 hours of operation - 4 hours of rest
P6 – 6 hours of operation – 6 hours of rest
P8 - 8 hours of operation - 8 hours of rest

Continuous filtration of the pool water ensures not only overall comfort but also an appropriate level of hygiene. The use of a filtration system guarantees, above all, safety and enjoyment while playing or relaxing in a portable pool. It also allows the water to be used for longer periods, which reduces the frequency of water changes and, consequently, lowers the costs and time associated with refilling the pool.

MANUFACTURER:

Bestway Inflatables and Material Corp.
No. 208 Jin Yuan Wu Road
Shanghai, 201812, China
Tel 86 21 69135588
info@bestwaycorp.com

PERSON RESPONSIBLE IN THE EU:

BESTWAY EUROPE S.p.a.
VIA RESISTENZA, 5
20098 SAN GIULIANO MILANESE (MI)
VAT no.: IT 02561670130
kontakt:
e-mail: compliance@bestwaycorp.eu
responsible person:
Laura Di Dio l.didio@bestwaycorp.eu

WARNING TEXT:

WARNING
IMPORTANT SAFETY INSTRUCTIONS—READ AND FOLLOW ALL SAFETY INSTRUCTIONS.
When installing and using this electrical device, always follow basic safety procedures, including:
-The pump should be powered by an isolation transformer or a residual current device (RCD) with a rated residual current not exceeding 30 mA.
-The power source on the building wall should be located more than 4 m from the pool.
-The device must be powered by a grounded power source.
-ELECTRIC SHOCK HAZARD - Do not use the pump while people are in the pool. Do not use the pool if the sand filter is damaged.
-DO NOT BURY THE CABLE. Position the cable so as to minimize the risk of damage from lawn mowers, pruning shears, and other equipment.
-To eliminate the risk of electric shock, replace a damaged cord immediately.
-If the power cord is damaged, it must be replaced by the manufacturer, its service representative, or a similarly qualified person to avoid danger.
-Do not use extension cords.
-Risk of electric shock. Connecting the sand filter to an inappropriate power source is dangerous and will cause irreversible damage to the unit.
-Do not remove the grounding contact or modify the plug in any way. Do not use plug adapters. Consult an electrician if you have questions regarding grounding or plugs.
-Handle the sand filter with care. Do not drag it or carry it by the power cord. Never pull the plug out of the outlet by pulling on the cord. Do not allow the power cord to become frayed. Keep the sand filter away from sharp objects, oil, moving parts, and heat.
-Always disconnect the unit from the power supply before disassembling, cleaning, servicing, or making any modifications.
-Do not plug the device into or unplug it from an outlet with wet hands.
-Always unplug the device:
--On rainy days
--Before cleaning or performing other maintenance tasks
--When leaving it unattended during vacation.
-If the product will not be used for an extended period, such as during the winter, the pool set should be disassembled and stored indoors.
-Note: Read the instructions before each use and before setting up or taking down this device.
-Keep the instructions in a safe place. It is recommended that you refer to the user manual each time you set up the pool again.
-If you do not have the manual, please contact Bestway or find it on the website: www.bestwaycorp.com
Electrical installations must be performed in accordance with national wiring regulations. If you have any questions, consult a qualified electrician.
-NOTE: The sand filter is intended only for inflatable pools. Do not use it with in-ground pools. A portable pool is designed so that it can be disassembled for storage and then reassembled for reuse. A permanent pool is usually built on the ground or buried so that it cannot be disassembled for storage.
-Always disconnect the unit from the power source before assembly, disassembly, or cleaning.
-The equipment may be used by persons with physical, sensory, or mental limitations, or by those without experience or knowledge, provided they are supervised or have received instructions on the safe use of the equipment and understand the associated risks.
-Children must not play with the device.
-Pumps not marked as freeze-protected should not be left outdoors during freezing temperatures.
-Cleaning and maintenance must be performed by an adult over the age of 18 who is familiar with the risk of electric shock.
NOTES:
-Place the sand filter on a hard, level surface. Ensure that the sand filter is at least 2 meters away from the pool. Keep it as far away as possible.
-Pay attention to the placement of the sand filter and the pool to ensure proper ventilation, water drainage, and access for maintenance work. Never place the sand filter in an area where water accumulates or where many people pass by.
-After installing the unit, the plug must be accessible. The sand filter’s plug should be located at least 3.5 meters from the pool.
-Weather conditions can affect the performance and lifespan of the sand filter; take appropriate measures to protect the sand filter from unnecessary wear and tear that may occur during periods of cold, heat, or exposure to sunlight.
-Before use, check that you have all the components. If you notice any damaged or missing parts after purchase, notify Bestway Customer Service by sending a notice to the address listed in this manual.
-It is important to replace all worn parts as soon as possible. Use only parts approved by the manufacturer.
-Do not allow children or adults to lean on or sit on the unit.
-Do not add chemicals to the sand filter.
-When using chemicals to treat pool water, it is recommended to observe the minimum filtration time to protect swimmers’ health, which depends on compliance with health regulations.
-Use only the mounting hardware supplied or specified by the manufacturer when installing the product.
-It is essential to check that the suction inlets are not clogged.
-It is recommended to stop filtration during maintenance work on the filtration system.
-Regularly monitor the filter’s clogging level.
-It is recommended to check the filter’s condition weekly to perform backwashing or cleaning as needed. To ensure clean water, daily filtration for 8 hours is recommended.
-Any damaged component or set of components must be replaced as soon as possible. Use only parts approved by the person responsible for placing the product on the market.
-All filters and filter media should be checked regularly to ensure that contaminants have not accumulated, thereby preventing proper filtration. Disposal of any used filter media must also comply with applicable regulations and laws.
-All safety requirements and recommendations in the operating manual must be followed. If you have any questions regarding the pump or any other components of the water circulation system, contact a specialist or the manufacturer/importer/distributor. The water circulation system installation must comply with European and national/local regulations, especially if it comes into contact with electrical components. Any change in the position of valves, or a change in the size of the pump or strainers, may alter the flow pattern and increase the suction rate.
-This product is not intended for commercial use.
Please read the user manual carefully and keep it for future reference.
KEEP THIS MANUAL

Technical data

Weight [kg]: 17.00
Length [cm]: 51.5
Width [cm]: 52
Height [cm]: 63
Length of the collective package [cm]: 63
Width of the collective packaging [cm]: 51.5
Height collective package [cm]: 52
Weight including packaging [kg]: 17.3

For download

User manual for product 00009883

GPSR

Manufacturer: Bestway Inflatables and Material Corp.
No. 208 Jin Yuan Wu Road
Shanghai, 201812, China
Tel 86 21 69135588
info@bestwaycorp.com
Responsible person: BESTWAY EUROPE S.p.a.
VIA RESISTENZA, 5
20098 SAN GIULIANO MILANESE (MI)
VAT no.: IT 02561670130
kontakt:
e-mail: compliance@bestwaycorp.eu
responsible person:
Laura Di Dio l.didio@bestwaycorp.eu
Warning text: WARNING
IMPORTANT SAFETY INSTRUCTIONS — READ AND FOLLOW ALL SAFETY INSTRUCTIONS.
When installing and using this electrical device, always follow basic safety procedures, including:
-The pump must be powered by an isolation transformer or a residual current device (RCD) with a rated residual current not exceeding 30 mA.
-The power source on the building wall must be located more than 4 m from the pool.
-The device must be powered by a grounded power source.
-ELECTRIC SHOCK HAZARD - Do not use the pump when people are in the pool. Do not use the pool if the sand filter is damaged.
-DO NOT BURY THE CORD. Position the cord so as to minimize the risk of damage from lawn mowers, pruning shears, and other equipment.
-To eliminate the risk of electric shock, replace a damaged cord immediately.
-If the power cord is damaged, it must be replaced by the manufacturer, its service representative, or a similarly qualified person to avoid danger.
-Do not use extension cords.
-Risk of electric shock. Connecting the sand filter to an inappropriate power source is dangerous and will cause irreversible damage to the unit.
-Do not remove the grounding contact or modify the plug in any way. Do not use plug adapters. Consult an electrician if you have questions regarding grounding or plugs.
-Handle the sand filter with care. Do not drag it or carry it by the power cord. Never pull the plug out of the outlet by pulling on the cord. Do not allow the power cord to become frayed. Keep the sand filter away from sharp objects, oil, moving parts, and heat.
-Always disconnect the unit from the power supply before disassembling, cleaning, servicing, or making any modifications.
-Do not plug the unit into or unplug it from an outlet with wet hands.
-Always unplug the unit:
--On rainy days
--Before cleaning or performing other maintenance tasks
--When leaving it unattended during vacations.
-During extended periods of non-use, such as in the winter, the pool kit should be disassembled and stored indoors.
-Note: Read the instructions before each use and before folding or unfolding this device.
-Keep the instructions in a safe place. It is recommended that you refer to the user manual each time you set up the pool again.
-If you do not have the instructions, please contact Bestway or look them up on the website: www.bestwaycorp.com
Electrical installations should be performed in accordance with national wiring regulations. If you have any questions, consult a qualified electrician.
-NOTE: The sand filter is intended only for inflatable pools. Do not use it with in-ground pools. A portable pool is designed so that it can be disassembled for storage and then reassembled for reuse. A permanent pool is usually built on the ground or buried so that it cannot be disassembled for storage.
-Always disconnect the unit from the power source before assembly, disassembly, or cleaning.
-The equipment may be used by persons with physical, sensory, or mental limitations, or by those lacking experience and knowledge, provided they are supervised or have received instructions on the safe use of the equipment and understand the associated risks.
-Children must not play with the device.
-Pumps not marked as freeze-protected should not be left outdoors during freezing temperatures.
-Cleaning and maintenance must be performed by an adult over 18 years of age who is familiar with the risk of electric shock.
NOTES:
-Place the sand filter on a hard, level surface. Ensure that the sand filter is at least 2 meters away from the pool. Keep it as far away as possible.
-Pay attention to the placement of the sand filter and the pool to ensure proper ventilation, water drainage, and access for maintenance work. Never place the sand filter in an area where water accumulates or where many people pass by.
-After installing the unit, the plug must be accessible. The sand filter’s plug should be located at least 3.5 meters from the pool.
-Weather conditions can affect the performance and lifespan of the sand filter; take appropriate measures to protect the sand filter from unnecessary wear and tear that may occur during periods of cold, heat, or exposure to sunlight.
-Before use, check that you have all the components. If you notice any damaged or missing parts after purchase, notify Bestway Customer Service by sending a notice to the address listed in this manual.
-It is important to replace all worn parts as soon as possible. Use only parts approved by the manufacturer.
-Do not allow children or adults to lean on or sit on the unit.
-Do not add chemicals to the sand filter.
-If you use chemicals to treat the pool water, it is recommended that you observe the minimum filtration time to protect swimmers’ health, which depends on compliance with health regulations.
-Use only the mounting hardware supplied or specified by the manufacturer when installing the product.
-It is essential to check that the suction inlets are not clogged.
-It is recommended to stop filtration during maintenance work on the filtration system.
-Regularly monitor the filter’s clogging level.
-It is recommended to check the filter’s condition weekly to perform backwashing or cleaning as needed. To ensure clean water, daily filtration for 8 hours is recommended.
-Any damaged component or set of components must be replaced as soon as possible. Use only parts approved by the person responsible for placing the product on the market.
-All filters and filter media should be checked regularly to ensure that contaminants have not accumulated, thereby preventing proper filtration. Disposal of any used filter media must also comply with applicable regulations and laws.
-All safety requirements and recommendations set forth in the operating manual must be followed. If you have any questions regarding the pump or any other components of the water circulation system, contact a specialist or the manufacturer/importer/distributor. The water circulation system installation must comply with European and national/local regulations, especially if it comes into contact with electrical components. Any change in the position of valves, or a change in the size of the pump or strainers, may alter the flow pattern and increase the suction rate.
-This product is not intended for commercial use.
Please read the user manual carefully and keep it for future reference.
KEEP THIS MANUAL
