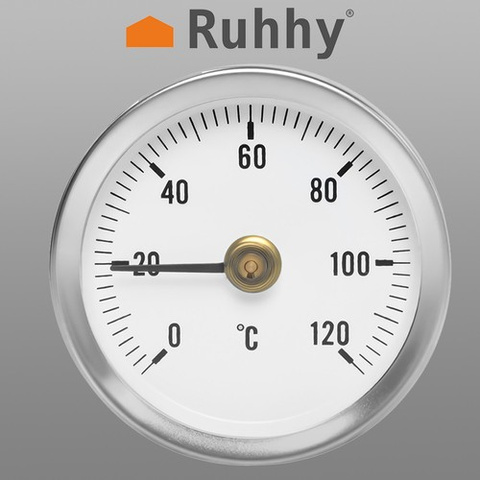

T8122 Dial Thermometer
PIPE-MOUNTED DIAL THERMOMETER
- STAINLESS STEEL – thanks to the material from which the thermometer is made, it will serve for many years.
- ACCURATE MEASUREMENT – °C graduation allows for precise temperature control.
- APPLICATION - bimetallic thermometers are used in various fields, including the food, chemical, medical industries and in households, where they are used to measure the temperature in the oven, on radiators, etc.
- SPRING - A thermometer consists of two strips of metal, joined together and wound into the shape of a spring. When the thermometer is heated, the strips of metal expand to varying degrees, causing the spring to bend. This bend is proportional to the increase in temperature, allowing the temperature at the point where the thermometer is placed to be measured.
- SPECIFICATION - material: stainless steel, others: aluminum + glass + iron + manganese alloy + copper + carbon steel; measurement range: 0-120°C; graduation: in °C; spring length without stretching: 6.5 cm; sensor location: on the back of the device; dimensions: 6.3 x 6.3 x 1.5 cm; weight: 0.054 kg; weight in packaging: 0.065 kg.
THERMOMETER SPECIFICATION:
- material: stainless steel, others: aluminum + glass + iron + manganese alloy + copper + carbon steel
- measurement range: 0-120°C
- scale: in °C
- spring length without stretching: 6.5 cm
- sensor location: back of the device
- dimensions: 6.3 x 6.3 x 1.5 cm
- weight: 0.054 kg
- weight in package: 0.065 kg

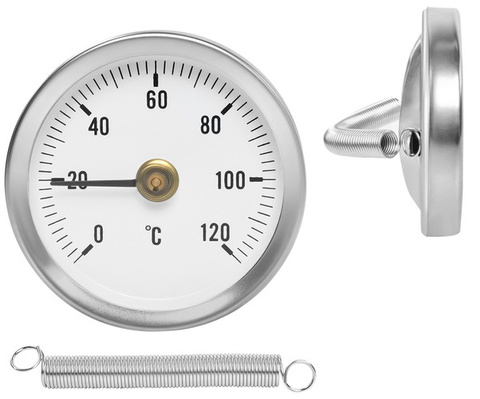

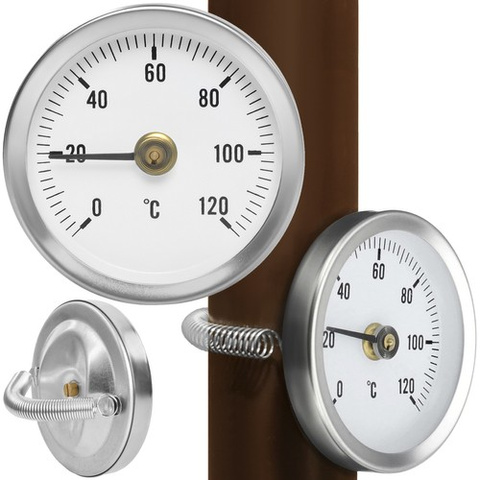

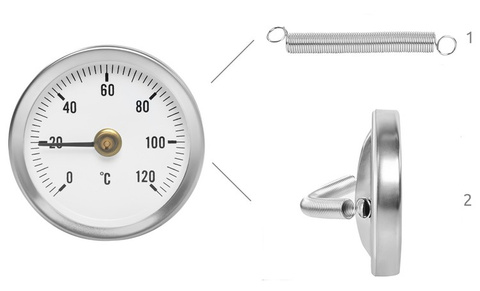

Bimetallic thermometer is used to measure the temperature of gases and liquids flowing through pipes. Useful in heating installations, pipelines or tanks. The thermometer is mounted using a spring included in the set. The length of the spring without stretching is 6.5 cm - fits standard pipes.
PRODUCER:
ISO TRADE Spółka z o.o.
ul. Hangarowa 15
59-220 Legnica, Polska
office@iso-trade.biz
RESPONSIBLE PERSON IN THE EU:
ISO TRADE
WARNING CONTENT:
- Use as intended.
- Do not store in a place with high humidity.
- Do not expose to sunlight.
- Keep away from children and animals. The dial thermometer should be kept out of reach of children to avoid the risk of cuts or other injuries related to its use.
-Avoid contact with water. This may damage the device and affect the accuracy of measurements.
